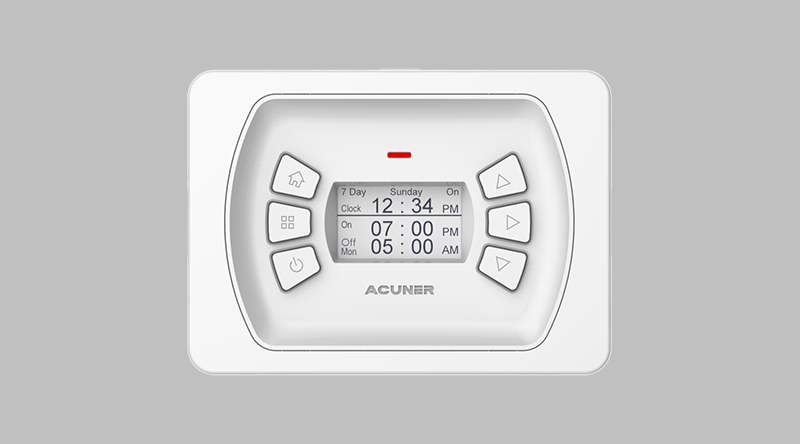

Programmable Timer Switch - TS110
Programmable Timer Switch - TS110

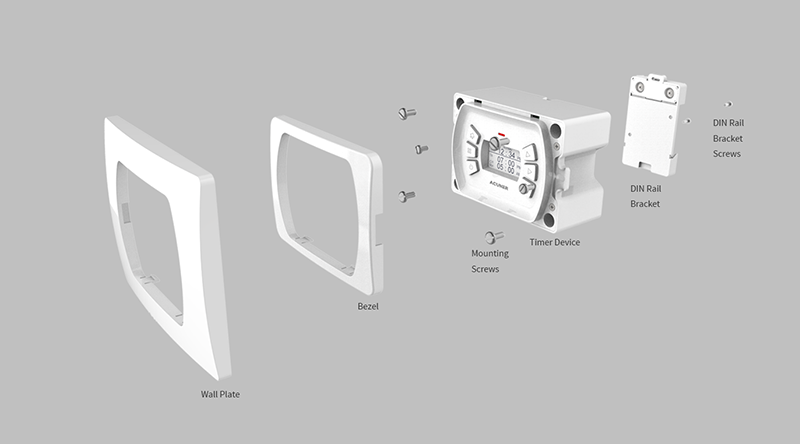

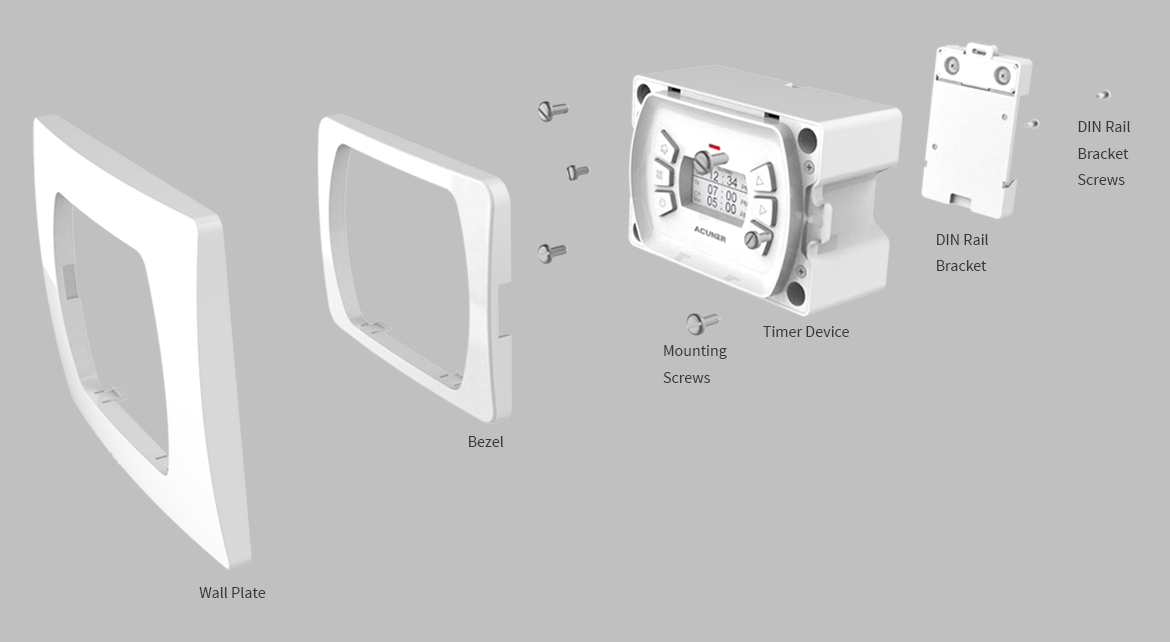

In box components

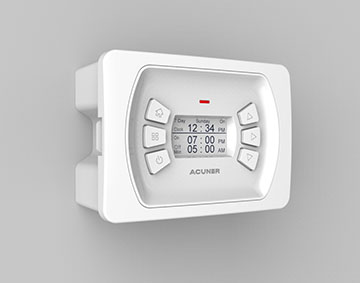

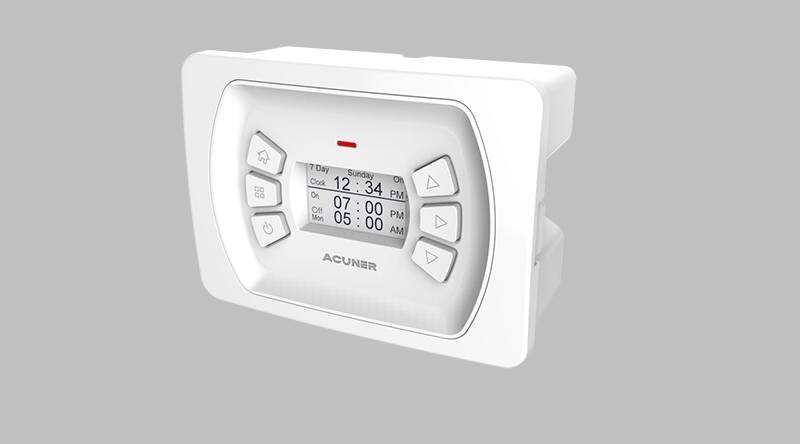

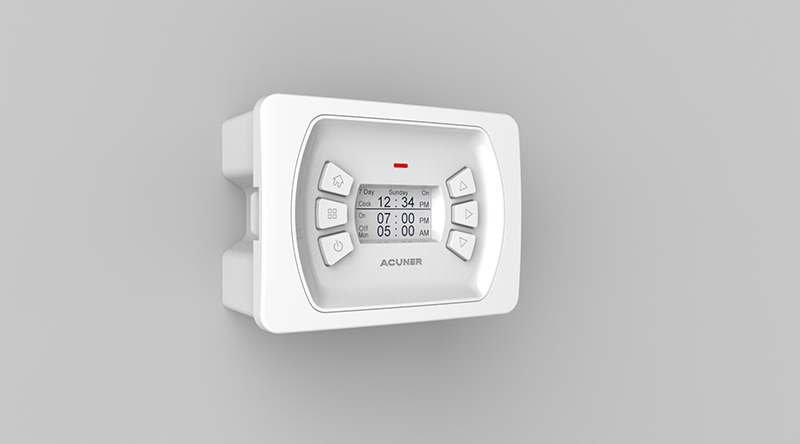

Direct wall mounting

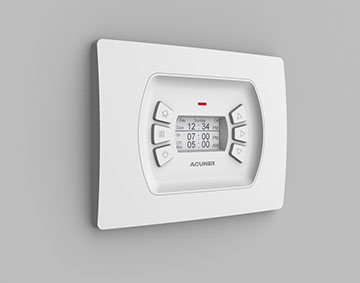

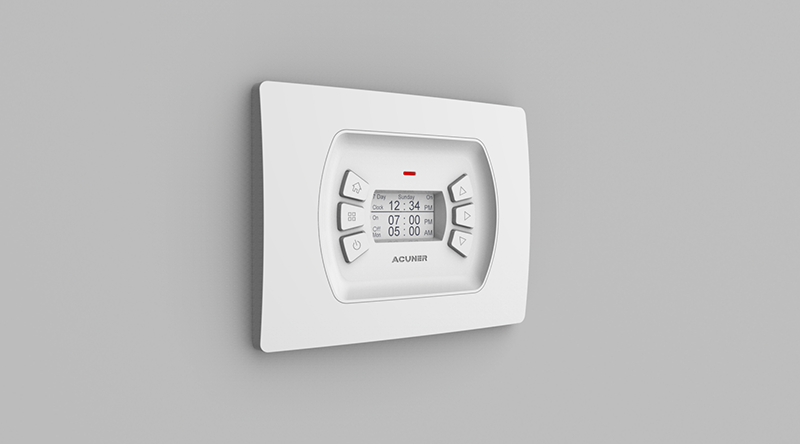

Flush with wall using Wall Plate

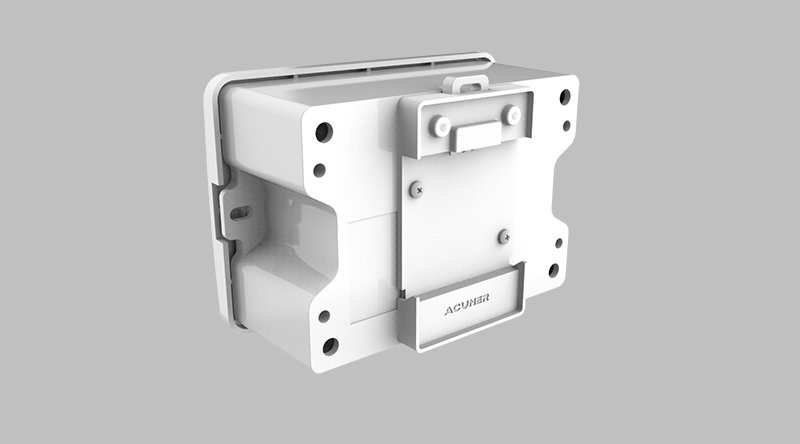

Rear view wih DIN Rail bracket installed

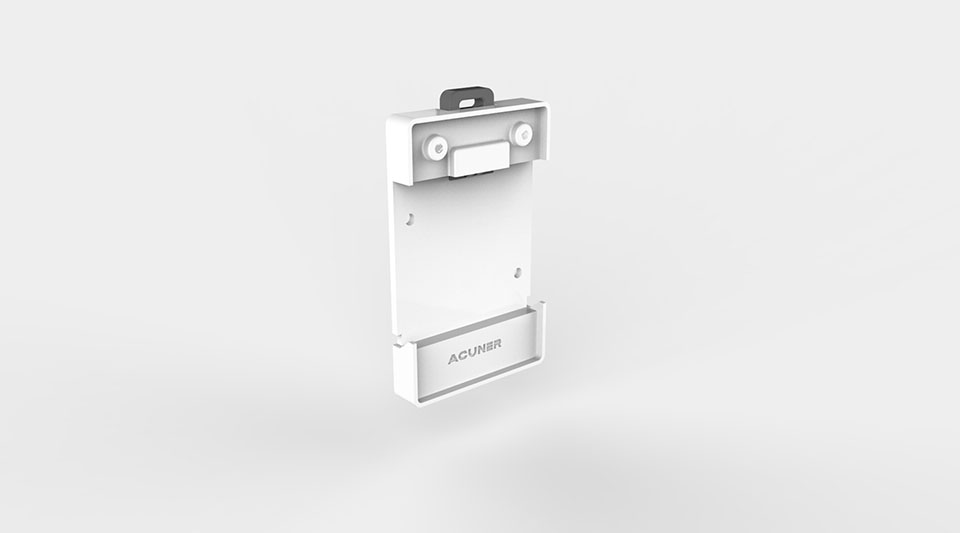

DIN Rail Bracket

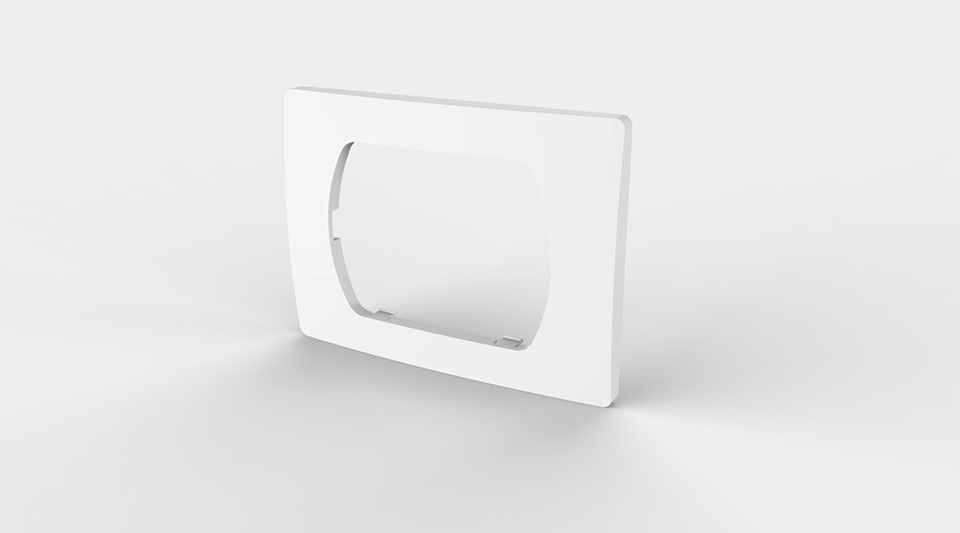

Wall Plate

Acuner programmable timer switch will automatically turn on/off your devices at your home, office, shop and Industry (lights, fan, signboards, motor etc). You can set up a unique on/off schedule everyday of the week. You control lights and other appliances and you save on energy costs.

Features:

Modern and Sleek design
Simple and Easy Programming
Backlight Display
Seven-day Programming (up to seven ON and seven OFF times per week)
Three mounting options
- Direct wall mount
- Fits into 3 switch module standard electrical box

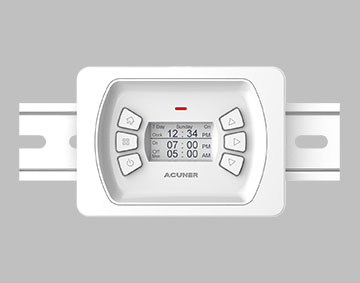

- DIN rail
Has 4 operating modes
- 7 Day On/Off - Auto 24hr ON / OFF with seven-day programming
- Off Time Only - Manual start and Auto-off at a specified time with seven-day programming
- Timer - Manual start and auto off for a fixed duration
- Periodic - Periodic ON / OFF duration with seven-day programming
White in colour, hence will pair well with any wall and surroundings
Manual override enables your device to be turned ON/OFF
One -year Warranty
Quality product at competitive price
Designed and Made in India
Rated for 10 A, SPST NO

PACKAGE CONTENTS:

Timer Device
Wall Plate
DIN Rail Bracket
Mounting screws
Installation and User’s guide.

Supply Voltage	230V±10%
Rated frequency	50/60 Hz
Contact Rating	10A (Resistive loading) 2A (Inductive)
No of outputs	1
Type of contact	Relay
Accuracy	±2.5 Sec/day
Terminal Type	Screw connector
Terminal Capacity	0.5 - 2.5 sq mm (30 to 12 AWG)
Program function	ON/OFF
Shortest Switching time	1 Minute
Internal Battery storage capacity	10 Years
Storage Ambient	-10 °C to 65 °C
Working Ambient	0 °C to 45 °C
Weight	200 Gms
Colour	White
Material	FR grade PC
Installation Type	Wall mount, DIN Rail and Flush with wall (Fits into standard 3 switch electrical box)
Buttons	Home, Set/Menu, Override, Up, Right and Down
Package Contents	Timer Device, Wall Plate, DIN Rail Bracket, Mounting screws, Installation and User’s guide

With the flat plate,

Home Lighting / Fan:

Acuner Timer will control your lights automatically.

Great for home security. Darkened homes are irresistible to burglars. With Acuner’s timer seven day programming you can set different on/off time for your lights each day of the week.

We all feel cold early morning and hate to get up just to turn off the fan. Acuner timer can be used to set a specified OFF time and Fan will turn off automatically.

Exhaust Fans:

Most bathroom exhaust fans are designed to run 24/7. Question is, do we need it to run 24/7?

Using our Exhaust fan mode (Mode 4), you can set the periodic on / off duration for the week and save on energy costs by more than 50%. For example, the timer is set to 5 mins of ON time and 5 Mins of OFF time, this way the exhaust is running only 50% and is still effective. You can set the start and stop time for the day, and weekend settings a well. Running the exhaust fan lesser means less conditioned air sucked out of your home / office.
